Note: Please read the user manual and detailed description carefully before purchasing and using.

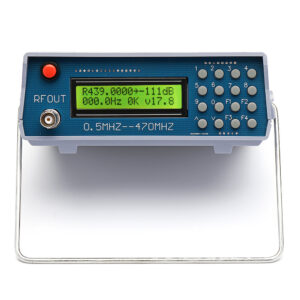

0.5Mhz-470Mhz RF Signal Generator Meter Tester for FM Radio Walkie-Talkie Debug
Descriptions:
– For FM walkie-talkie debugging
– Frequency 0.5M — 470M
– Signal strength -70–132dBm
– Built-in 800Hz tone modulation
– Use 8–12V DC power supply
– Frequency 7 digits Example: 439012.5KHZ display 4390125
– Signal strength -70–132dBm effective other value is invalid
– Value direct input selection item: the number keys
– Numerical stepping modify the selection of project: arrow keys
Audio modulation just about 800Hz other value is invalid:
F1: cycling setting item,pointing to the selected item,respectively,frequency,signal strength,audio modulation frequency
F2: backspace key input of an error
F3: closed,open signal output
F4: closed,open audio signal modulation
Package Includes:
1 x 0.5Mhz-470Mhz RF Signal Generator Meter Tester
Detail Pictures:
